Integrated Pump Hand Pallet Truck Quick Lift Fork Length 1220mm High Performance

Name: Integrated Pump Hand Pallet Truck Quick Lift Fork Length 1220mm High Performance
Brand: REACH
Price: 1 USD

Brand Name : REACH

Model Number : BF-III

Certification : CE, TUV

Place of Origin : Zhejiang, China

MOQ : 6 sets

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 40000 sets per month

Delivery Time : 25 - 30 days

Packaging Details : 6sets/pallet, 144 / 180sets for a 20ft container

Capacity : 2500kg

Lowered fork height : 85/75mm

Steering wheel : 180mm

Fork wheel : 74*93/74*70mm

Max. lifting height : 195/185mm

Fork length : 1150/1220mm

Width overall forks : 520/550/685mm

Service weight : 70kg

Contact Now

Premium economical 2500kg hand pallet truck with integrated pump

Quick Details

Model: Economical hand pallet truck BF- III

Capacity: 2500kg

Lowered fork height: 85/75mm

Total lift height: 195/185mm

Fork dimension: 520/550/685*1150/1220mm

Turning radius: 1276/1346mm

Advantages:

Economical type of BF, only could lift 2500kg, choose more suitable grease fitting, the supporting holder for this type.
Integrated pump without welding, do not have leaking problems.
Frame force is more reasonable, and the strength is more reliable.
Handle seat has hole it is more convenient for installation of control chain.
Forks lowering speed is controllable, with overload valve to avoid overloading.
Option: 1. steering wheel 200mm (fork wheel 80mm) are available.

2. Nylon wheel, polyurethane wheel, rubber wheel, single fork roller or tandem fork rollers.

3. Fork length: 800mm, 900mm, 1000mm, 1100mm.

4. Foot pedal release.

5. Pump color: black painting.

6. Quick lift (double speed lifting).

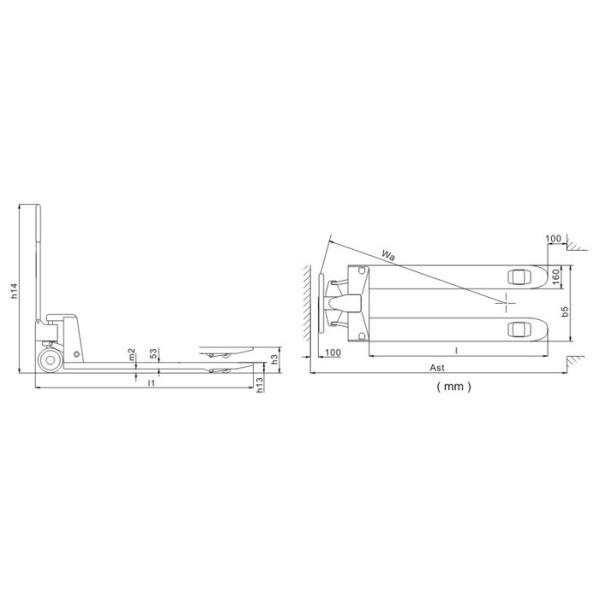

SPECIFICATIONS
Model		BF-III
Capacity	kg	2500
Lowered fork height	mm	85/75
Steering wheel	mm	180
Fork wheel single	mm	74*93
Fork wheel double	mm	74*70
Max. lifting height	mm	195/185
Height of tiller in drive position min./max.	mm	1214
Overall length	mm	1543/1613
Fork length	mm	1150/1220
Width overall forks	mm	520/550/685
Ground clearance, centre of wheelbase	mm	32/22
Aisle width for pallets 1000*1200 crossways	mm	1743/1813
Aisle width for pallets 800*1200 lengthways	mm	1793/1813
Turning radius	mm	1276/1346
Service weight	kg	70
